Pellet boiler

Pellet boiler

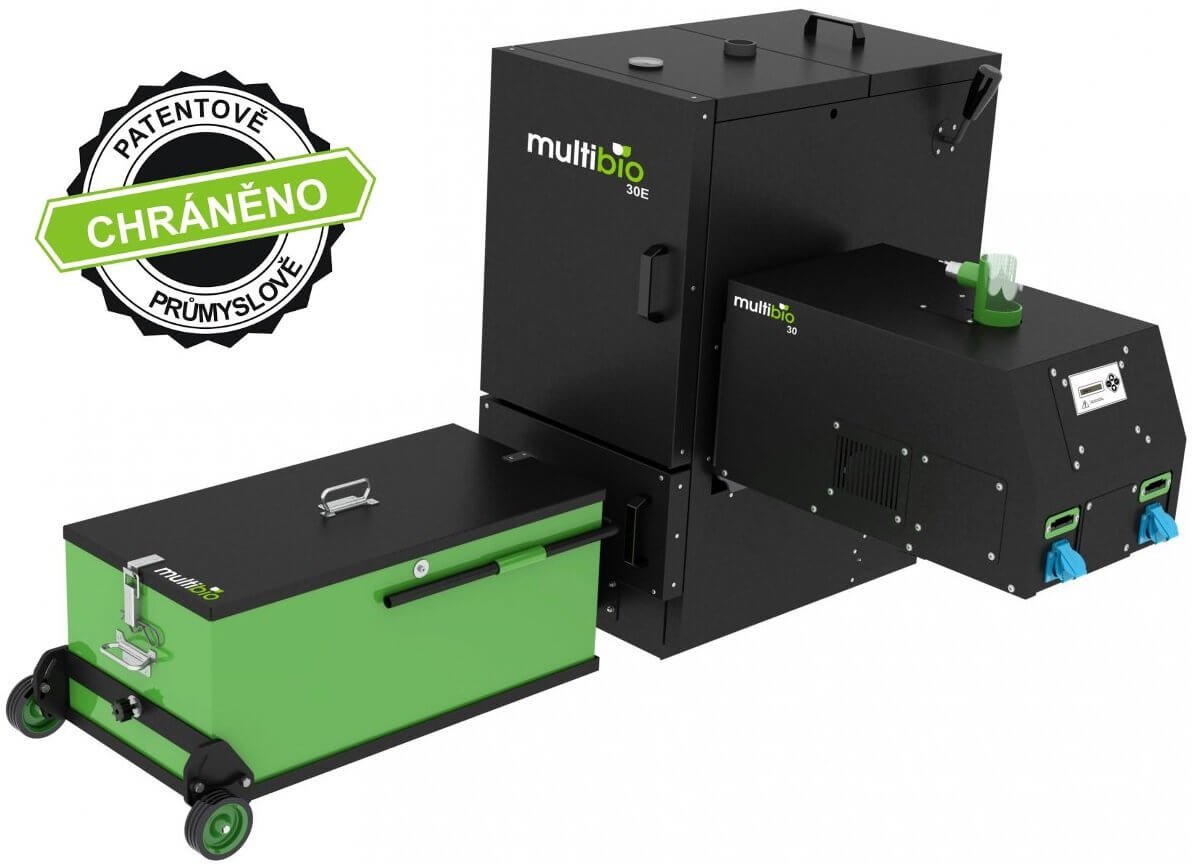

MultiBio boilers are the subject of patent and industrial legal protection.

MultiBio pellet boiler 30 E / ES is certified in emission class 5 for wood pellets and meets EcoDesign requirements.
Low heating costs - The boiler does not operate in a damping mode, saving fuel up to 10%.

  • Automatic fuel ignition
  • Automatic operation
  • Automatic ash removal (optional)
  • Cleaning the boiler heat-exchanger without dismantling the boiler
  • Automatic cleaning of the boiler exchanger (optional)
  • Remote access over the Internet

Grant programs New Green Savings and Kotlíková subsidies

  • MultiBio 30 E pellet boiler - written under SVT 5875 - refer to SVT page Here
  • Pellet boiler MultiBio 30 ES - registered under SVT 5910 - SVT link to Here
  • Basic information

    Energy saving and efficient MultiBio 30 pellet boiler

    Pellet boiler MultiBio is a Czech product suitable for comfortable automatic, ecological and economical heating of family houses, residential units and buildings with a loss capacity of 8 to 30 kW. The boiler can be operated both with and without a storage tank due to power modulation. In conjunction with a combined boiler or accumulation tank, the MultiBio boiler can prepare hot water all year round.

    MultiBio 30 pellet boiler design

    MultiBio differs fundamentally due to its unique design from other products on the market. The MultiBio boiler body is three-stroke. With small dimensions, it has a high efficiency of over 90% and a low temperature of the flue gases, which maintains even if the boiler operator is cleaning the heat exchanger once only after the heating season. Unlike single-stroke boilers, there is a significantly better heat exchange between the fire and the heated water in the MultiBio boiler.

    The MultiBio hot water boiler has precisely controlled air and fuel metering for the full range of its output with a working temperature within the burner up to 1200 ° C. The high combustion temperature ensures low emissions without odor and aggressive compounds. MultiBio does not use the damping mode as other retort or cup boilers, in which fuel is still smolder. Thanks to this combustion the boiler does not suffer from self-destruction and does not bother the surroundings by smell from the chimney. The MultiBio boiler has negligible emissions of carbon monoxide and is environmentally friendly. With the MultiBio boiler, you can save up to one third of the fuel costs when heating with lower quality wood pellets and lower prices.

    • Advantages of the MultiBio boiler electronics

      Advantages of the MultiBio boiler electronics

      MultiBio pellet boiler control unit is intuitive and easy. Complete electronics and software is an original Czech product developed only for MultiBio boilers.

      • Precise performance adjustment and its easy change
      • Modulation of boiler delivered power output
      • Control of charging the storage tank
      • Control of the short loop pump
      • Controlled Ash removal screw
      • Preset values for combustion (presets) for different outputs
      • The ability to create custom user presets based on fuel quality and performance
      • Boiler control via the optional MultiBio NET Internet module     -- //LINK
    • Combustion quality - Fuel for pellet boiler MultiBio 30

      Combustion quality - Fuel for pellet boiler MultiBio 30

      • Certified fuel 1: Wood pellets (C1) - Emission class of boiler 5, Ecodesign.
      • Thanks to the MultiBio rotary burner, the boiler also burns low-quality wood pellets without any problem without worsening the emission class or reducing user comfort. For MultiBio you can buy cheap and less quality wood pellets and you will not have to manually dig the ash of ash from the burner because the MultiBio burner does it automatically!

      Come to try your fuel or send us his sample!


    • Grants program in Czech Republic

      Grants for pellet boiler

      The MultiBio 30 E / ES series boilers can receive subsidies from the New Green Savings programs as well as Kotlík's subsidies. We provide free help to obtain grants for our ccustomers pomůžeme zdarma -- Odkaz EN

    • The pellet boiler works automatically

      The pellet boiler works automatically

      MultiBio pellet boilers operate automatically over the full power range - including fast, automatic ignition that does not take more than 2 to 5 minutes and full boiler power within 10 minutes after ignition. The automatic boiler can be started by a room equithermal or other conventional thermostat, storage tank thermostats, or remote access via the MultiBio Net Module. The boiler operation only adds fuel and ash extraction takes care of the automatic soap dispenser.

      Make it easy for operators with MultiBio automatic boiler disconnection and motor driven automatic boiler exchanger springs. ////LINK////

    • Using a fuel with high ash volume

      Using a fuel with high ash volume

      The MultiBio burner is a product with a unique combustion system consisting of a pressurized air chamber, a rotary grating with a special drilling, a precision fuel dispenser and a turnstile, which completely prevents fuel from burning back into the hopper without the use of a water canister.

      The MultiBio burner allows you to burn both high quality wood pellets and lower quality wood pellets with high ash or bark contents. The rotating horizontal combustion chamber in the shape of a roller of any grease and a greater amount of ash, during the burning, rolls into the ash compartment and does not bother operating the boiler. Possible specimens do not affect the quality of combustion.

      Wood pellets of the lowest quality with high bark and thus high percentage of sintered ash can not be reliably burned in simple bowl or retort structures.

      The MultiBio burner is an industrially protected product

  • Subsidies for boiler

    Subsidies on the MultiBio boiler

    Boiler subsidies for the MultiBio boiler

    The Ministry of the Environment launches a second wave of potable subsidies. In the second call for potable subsidies, several billion crowns will be distributed among the owners of family houses in the Czech Republic through regions, and several tens of thousands of old boilers will be replaced.

    Specific deadlines for receipt of applications in 2017 are gradually published by regional authorities.

    You need to advise on the boiler subsidy or to have your documents processed for free at your respective regional office, fill in the form below and we will contact you immediately.

    Selected information for those interested in additional pot subsidies.

    1. Replacement of old solid fuel boilers with manual application not meeting emission class 3 - 4 or 5 according to ČSN EN 303-5.
    2. New heat sources - boilers exclusively for biomass, automatic combined coal and biomass boilers, heat pumps and gas condensing boilers will be supported.
    3. For automated MultiBio boilers exclusively on biomass, the subsidy amount is 80% of the eligible costs of a partial project, up to a maximum of CZK 120,000
    4. priority areas of cities and municipalities - they will receive a bonus of CZK 7,500
    5. Eligibility of costs will be set as early as 15 July 2015.
    6. It will not be necessary to use the services of an energy specialist or to implement micro-energy measures or to document PENB.
    7. If the project is implemented in the New Green Savings program, the applicant will receive a bonus of up to CZK 40,000
    8. As an attachment to the grant application, it will be necessary to document the inspection of the technical condition and operation of the existing stationary combustion source for solid fuels.
    9. The new heat source must comply with the requirements of the Ecodesign Directive (equipment listed in the Supported Products and Technologies List - https://svt.sfzp.cz, maintained by the State Environmental Fund of the Czech Republic).

    We will help you with subsidies in these regions

    •  South Bohemian Region
    • Pilsen Region
    • Karlovy Vary Region
    • Usti Region
    • Liberec region
    • Hradec Kralove region
    • Pardubický kraj
    • Olomouc region
    • Moravian-Silesian Region
    • South-Moravian region
    • Zlín Region
    • Highlands region

    Help with kettle subsidy


    For assistance with boiler subsidies do not hesitate to call us on the subsidy line +420 608 955 676 or write to info@multibio.eu

  • Technical data
    Adjustable heating power from 9 to 30 kW
    Efficiency 90 %
    Boiler Class ČSN EN 303-5:2012 5
    Exhaust diameter 160 mm
    Boiler weight 302 kg
    Burner weight MB 30 65 kg
    Total Weight 367 kg
    Water Volume 65 dm3
    Working pressure 2,0 bar
    Testing pressure 4,0 bar
    Recommended return water 65 - 90 °C
    Lower water return tempeeature 55 °C
    Noise Level 40,2 +,- 3,2 dB
    Chimney draft 15 mbar
    Piping connection G 6/4”
    Voltage 1 PEN ~ 50 Hz, 230 V
    Ignition consumption 535 W
    Consumption in operation 56 W
    Electrical protection IP 20
  • MultiBio advantages

    Comparison of MultiBio boilers and burners with other burners on wood pellets

    Due to their construction MultiBio burners are able to burn fuels with difficulty combustibility, such as plant pellets. In this section of the site, however, we only consider burning wood pellets. If you are interested in the use of fuels other than wood pellets, go to the sites where the burners themselves or the products are certified for both fuels. MultiBio 30 (B) or MultiBio 49 (B)

    MultiBio burners also have a great advantage in burning wood pellets.

    Our customers often ask what are the advantages of the MultiBio rotary burner against bowl burners or square universal burners in connection with the burning of wood pellets. At first glance, it would seem that wood pellets can burn all types of burners on the market. MultiBio burners can also burn pellets whose quality does not match the certificate issued by the dealer to pellets. This is often the case and the pellet dealer can hardly prevent or influence it.

    The primary advantage of the burner is that it is not susceptible to the quality of wood pellets and can burn even the lowest grade pellets that creates ash sinter or even pellets that may contain more minerals and a significant amount of ash or admixtures that can make pellet makers easier production.

    From experience, we know that even if you bought high quality pellets with a certificate, you may find that you have a batch that did not "do". Then there is a situation that you have, for example, 5 tons of pellets in the basement, which the "normal" burner can not burn. Even if the dealer of the poor pellet willingly exchanges, it is necessary to move them out of the cellar. or suffer, remove excessive ash, or specimens from the burner and re-burn the burner. The MultiBio boiler does not do this. It can reliably burn pellets with which the burner or torch burners can not burn.

  • References
  • Installation guide
    • Boiler connection with four-way valve

      Boiler connection with four-way valve

      The connection is used for installations without a buffer tank. The connection uses two independent pumps, one for a short loop of the boiler and the other for holding a circulation of heating water in the heating system. The advantage of the second pump is to ensure full flow in the heating system and even heating of all radiators.

      Connection of MultiBio boiler with four-way valve

      Recommended installation of MultiBio 30 heating system

      • Design in copper with a diameter of 28 mm
      • Electronically controlled 4-way ESBE high-flow and 3-point 24 V
      • Control of the heating system ADEX Comfort R
      • Pump 25-6 or stronger for the heating circuit
      • Pump 25-4 for short boiler loop
      • Check valves for pumps

      Benefits of piping

      • Possibility to use burner power modulation
      • Possibility to integrate equithermal regulation
      • Removable heating water temperature for radiators
      • Possibility to connect a backup source
      • Possibility to connect the combined boiler

      Terms of engagement

      • Higher water volume in the heating system (old cast iron radiators are an advantage)
      • Installing the boiler with the safety valve at the boiler outlet before the first stop cock
      • Attaching an expansion vessel of a suitable size (typically 1:10 to the heating system)
      Boiler MultiBio piping diagram
    • Connecting the MultiBio 30 boiler with a storage tank

      Connecting the MultiBio 30 boiler with a buffer tank

      Components to create a boiler room with a buffer tank

      • Design in copper with a diameter of 28 mm
      • Electronically controlled three-way valve Rototemp 5/4 "on short boiler loop or thermostatic valve ESBE VTC 511-32 / 55
      • Pump 25-4 for short boiler loop
      • Pump 25-6 or stronger for the heating circuit
      • Check valves for pumps, Filters
      • ADEX Comfort%s s%to control the heating circuit
      • Three-way ESBE 131/2 with ESBE ARA 663, 24VAC, 120s, 3-point
      • Remote room thermostat

      Benefits of wiring

      • Possibility to use burner power modulation
      • Possibility to integrate equithermal regulation
      • Removable heating water temperature for radiators
      • Possibility to connect and switch on a backup heating source
      • The possibility of using a storage tank with an internal boiler for hot service water

      Principle of regulation of the boiler part of the heating system

      The boiler circuit pump is controlled by the boiler electronics and switches to set temperatures. The shut-off pump draws down the undesired cooling of the storage tank via the boiler body after the system has been tightened together with the backflow preventer.

      The boiler is controlled by two thermostats on the accumulation tank, the upper thermostat is set to 60 degrees and drops below this value at the top of the boiler switching. The lower thermostat is set to 80 degrees and the boiler switches off when the bottom of the storage tank is above this temperature.

      Three-way Valve The Rototemp Firing System ensures that the boiler returns to the required temperature and thus protects the boiler against low-temperature corrosion. It is also possible to use the ESBE thermostatic valve with the largest flow but only for 30 kW boilers.

      MultiBio with buffer tank
    • Trircesta-s-ovladanim-FIRST-Tichelmann_1pdf73.89 KB
      Tricesta-s-akumulaci-ovladani-FIRST-nerizena-vystupni-teplotaprpdf73.16 KB
      Tricesta-s-akumulaci-ovladani-FIRST-nerizena-vystupni-teplota-mpdf73.74 KB
      Tricesta-s-akumulaci-a-rozvadecem_1pdf85.63 KB
      Tricesta-s-akumulaci-a-rozvadecem-2pdf89.65 KB
      Tricesta-pro-domovni-rozvod-VTC_1pdf65.90 KB
      Tricesta-pro-domovni-rozvod-FIRST_1pdf67.10 KB
      Tricesta-plna-naloz-FIRST-pres-akumulacipdf86.18 KB
      Tricesta-plna-naloz-FIRST-mimo-akumulacipdf85.71 KB
      Tricesta-plna-naloz-ADEX-pres-akumulacipdf86.17 KB
      Tricesta-plna-naloz-ADEX-mimo-akumulacipdf86.17 KB
      Tricesta-bez-akumulace-FIRST_1pdf69.00 KB
      Tank-in-tank-FIRSTpdf96.04 KB
      Tank-in-tank-ADEX-MIDIpdf94.15 KB
      Nahradni-zdroj-na-tuha-palivapdf88.58 KB
      Kaskada-kotlu_1pdf162.63 KB
      Ctyrcesta-s-ovladanim-FIRST_1pdf73.60 KB
      Ctyrcesta-s-ovladanim-ADEX_1pdf81.13 KB
      Ctyrcesta-s-ohrevem-TUV-ovladani-FIRSTpdf87.61 KB
      Ctyrcesta-s-ohrevem-TUV-ovladani-ADEXpdf92.50 KB
  • Data sheets
    MultiBio-30-ESpdf352.99 KB
    Osvedceni-Ekodesign-MultiBio-30-a-49pdf592.18 KB
    0svedceni-o-zkousce-MultiBio-30pdf1.87 MB
    Certifikat-teplovodnich-kotlu-MultiBiopdf254.42 KB
